DL50FVS
Next-level convenience smartly made touchless
Specifications
| Model | CS-DL50FVS |
|---|---|
| Material and Specification | |
| Panel Material | Aluminum alloy |

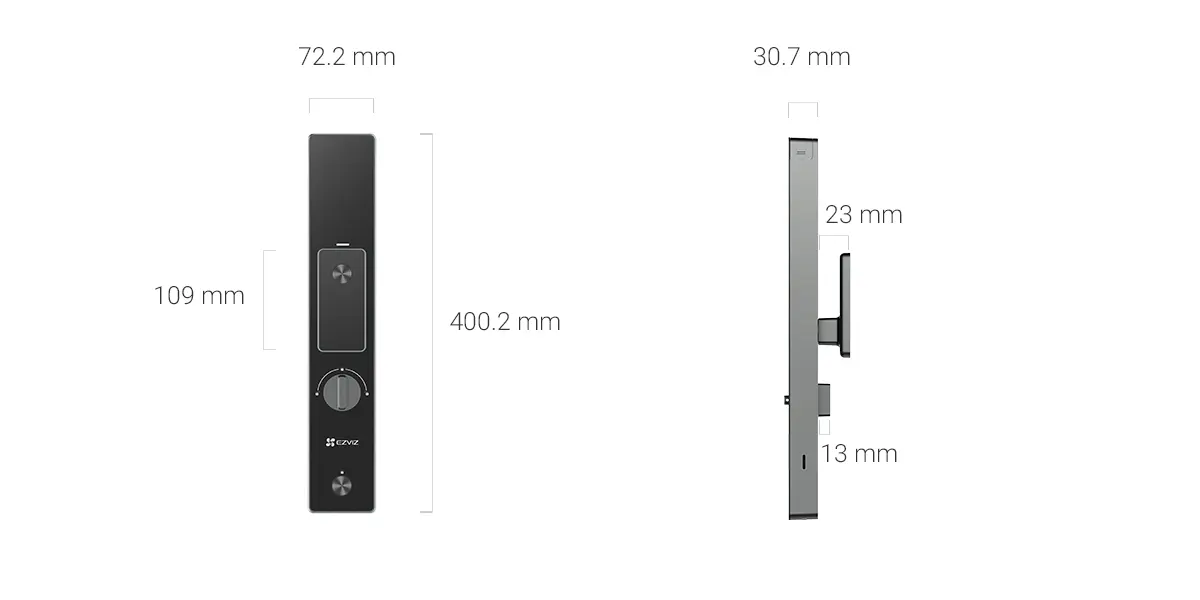

| Panel Size | Front panel: 400 × 72 × 22.5 mm, Rear panel: 400 × 72 × 30.5 mm |
| Color | Metallic grey |
| Lock Body Type | Automatic Mechanical Detection lock body |
| Lock Cylinder | C-level cylinder |
| Emergency Charging | Type-C |
| Working Power | 5000mAh rechargeable Lithium batteries |
| Technical Specification | |
| Unlocking Method | Face ID, Fingerprint, Passcode, Mechanical key, Bluetooth Key via EZVIZ App, Temporary codes, Remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Face ID | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Screen (Not touchable） | IPS / 4 inch |
| IP Grade | IP54 |
| Software Function | Anti-peeping code, low battery warning, privacy mode, user management, real time notification, anti-test locking, anti-tamper alarm, remote control, video calling, voice changer, wandering detection |
| Supported Door Thickness | 6068: 40-120 mm; 5085: 40-100 mm |
| Working Temperature | -10°C~55°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - Front Panel |
| - Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lock Body Screw Bag | |
| - Battery | |
| - Key Bag | |
| - Square Rod | |
| - Stickers | |
| - Regulatory Information | |
| - Quick Start Guide | |
