TY1
It's got you covered-all day & all night
Specification
-

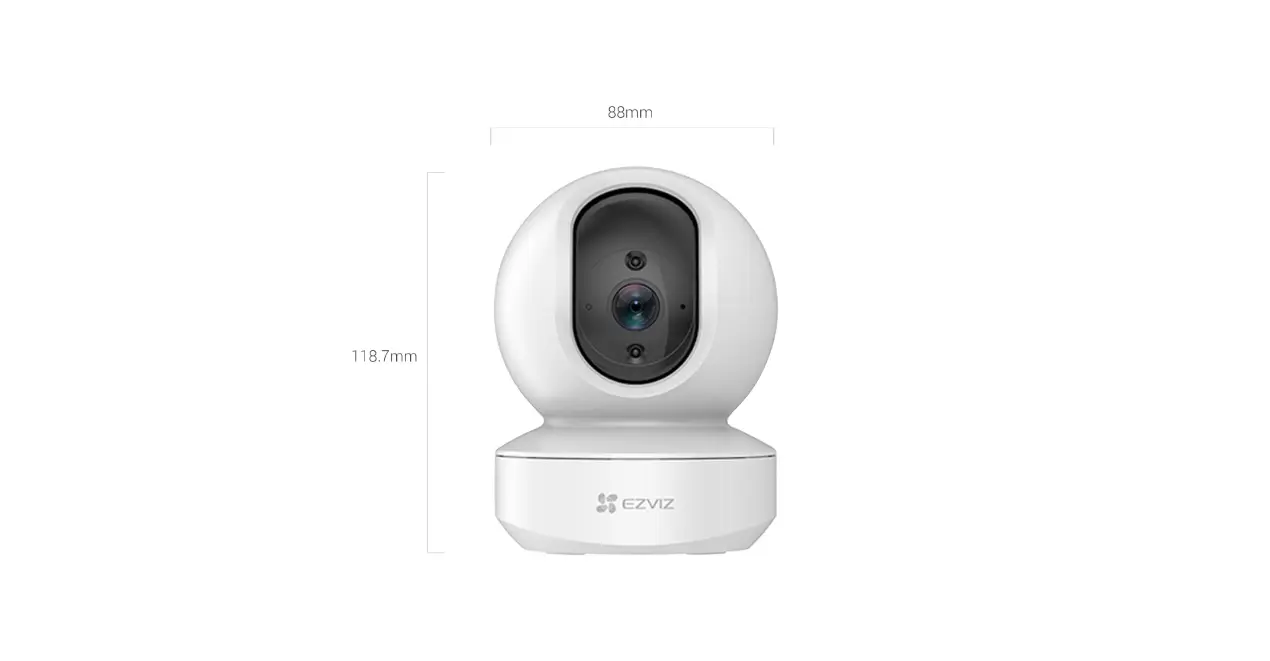

Model Parameters Model Model CS-TY1-B0-1G2WF Camera Image Sensor 1/3" Progressive Scan CMOS Shutter Speed Self-adaptive shutter Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical Lens Mount M12 Day & Night IR-cut filter with auto-switching DNR 3D DNR WDR Digital WDR Compression Video Compression H.264 Video Bit Rate Full HD; HD; Standard. Adaptive bit rate. Image Max. Resolution 1920 × 1080 Frame Rate Max:15fps; Self-Adaptive during network transmission Network Smart Alarm Motion detection Wi-Fi Pairing AP pairing Protocol EZVIZ Cloud proprietary protocol Interface Protocol EZVIZ Cloud proprietary protocol Interface Storage MicroSD card slot (Max. 256GB) Power Micro USB Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port) Wi-Fi Standard IEEE802.11b/g/n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Supports 20MHz Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps Operating Environment Temperature -10°C to 45°C (14°F to 113 °F) Humidity 95% or less (non-condensing) General Power Supply DC 5V/1A Power Consumption 5W max IR Range MAX. 10 meters (32.81 ft.) Dimensions 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch) Packaging Dimensions 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch) Net Weight 259g (9.14oz) In the box: In the box: TY1 Pan/Tilt Camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template ; Power Adapter ; Quick Start Guide certificates： certificates： FCC / UL / CE / WEEE / REACH / RoHS
